Low Voltage XLPE Insulated Armoured Cable |
|||
|
Armoured Cable Models |
Description |
Cores |
Cross Section Area |
|
Cu/xlpe/sta/pvc |
copper core, xlpe insulated, steel tape armoured, pvc sheathed cable |
1 core 2 core 3 core 4 core 5 core 3+1 core 3+2 core 4+1 core
|
0.5~1000mm² |
|
Al/xlpe/sta/pvc |
aluminum core, xlpe insulated, steel tape armoured, pvc sheathed cable |
||
|

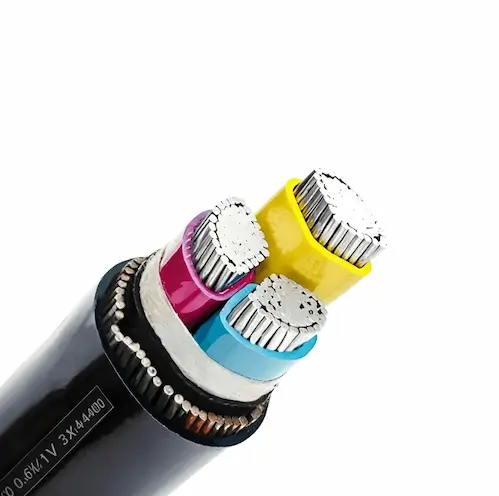

Cu/xlpe/swa/pvc |
copper core, xlpe insulated, steel wire armoured, pvc sheathed cable |
||
|
Al/xlpe/swa/pvc |
aluminum core, xlpe insulated, steel wire armoured, pvc sheathed cable |
||
|
Note: Flame retardant cable and fire resistant cable are also available. |
|||
|
Low Voltage PVC Insulated Armoured Cable |
|||
|
Armoured Cable Models |
Description |
Cores |
Cross Section Area |
|
Cu/pvc/sta/pvc |
copper core, pvc insulated, steel tape armoured, pvc sheathed cable |
1 core 2 core 3 core 4 core 5 core 3+1 core 3+2 core 4+1 core
|
0.5~1000mm² |
|
Al/pvc/sta/pvc |
aluminum core, pvc insulated, steel tape armoured, pvc sheathed cable |
||
|
Cu/pvc/swa/pvc |
copper core, pvc insulated, steel wire armoured, pvc sheathed cable |
||
|
Al/pvc/swa/pvc |
aluminum core, pvc insulated, steel wire armoured, pvc sheathed cable |
||
|
Note: Flame retardant cable and fire resistant cable are also available. |
|||
|
Medium Voltage XLPE Insulated Armoured Cable |
|||
|
Armoured Cable Models |
Description |
Cores |
Cross Section Area |
|
Cu/xlpe/sta/pvc |
copper core, xlpe insulated, steel tape armoured, pvc sheathed cable |
single core
3 cores |
35~1000mm²
|
|
Al/xlpe/sta/pvc |
aluminum core, xlpe insulated, steel tape armoured, pvc sheathed cable |
||
|
Cu/xlpe/swa/pvc |
copper core, xlpe insulated, steel wire armoured, pvc sheathed cable |
||
|
Al/xlpe/swa/pvc |
aluminum core, xlpe insulated, steel wire armoured, pvc sheathed cable |
||
|
Cu/xlpe/awa/pvc |
copper core, xlpe insulated, aluminum wire armoured, pvc sheathed cable |
||
|
Al/xlpe/awa/pvc |
aluminum core, xlpe insulated, aluminum wire armoured, pvc sheathed cable |
||
|
Note: Flame retardant cable and fire resistant cable are also available. |
|||
| Voltage: | 1kV ~3kV |
| Conductor: | Copper or Aluminum or Tinned Copper (solid class1, stranded class2, flexible class5 ) |
| Insulation: | Crosslinked Polyethylene (XLPE) PVC (optional) |
| Shield Layer (optional): | Copper tape(CTS) Copper Wire Braided (CWB) |
| Armour Type: | steel tape armoured (sta) steel wire armoured (swa) aluminum wire armoured (awa) |
| Outer Sheath: | Polyvinyl chloride (PVC) PE (Polyethylene) (optional) |
| Standards: | CCC/UL/CE/CNAS/IEC Certificate |
| Additional: | *FR, FRLS, LSZH, LSOH, LSHF, anti-termite cables are also available. *Customized products are supported. |
| Voltage: | 3.6kV ~35kV |
| Conductor: | Copper or Aluminum |
| Insulation: | Crosslinked Polyethylene (XLPE) |
| Shield Layer: | Copper Tape Shield(CTS) Copper Wire + Copper Tape Helically Shield(optional) |
| Armour Type (optional): | steel tape armoured (sta) steel wire armoured (swa) Aluminum wire armoured (awa) |
| Outer Sheath: | Polyvinyl chloride (PVC) PE (Polyethylene) (optional) |
| Standards: | CCC/UL/CE/CNAS/IEC Certificate |
| Additional: | *FR, FRLS, LSZH, LSOH, LSHF, anti-termite cables are also available. *Customized products are supported. |
XLPE Material:
Max. service temperature: 90 ℃
Min.temperature when installation: 0℃
Max. short-circuit temperature: 250℃ (max. 5s)
Min. service temperature: -40℃ (fixed and protected installations)
Max. service temperature: 70 ℃
Min.temperature when installation: 0℃
Max. short-circuit temperature: 160℃ (max. 5s)
Min. service temperature: -40℃ (fixed and protected installations)
|
Item |
Single Core |
Multi core |
||
|
Unarmored |
Armored |
Unarmored |
Armored |
|
|
Min. Bending Radius When installation |
20D |
15D |
15D |
12D |
|
Minimum bending radius of the cable near the connection box and terminal (bending should be carefully controlled, such as with a formed guide) |
15D |
12D |
12D |
10D |
|
* D means overall diameter of cables. |
||||
99.99% Copper/99.6% Aluminum Safety,low resistance,stable voltage, more power saving.
Prevent damage is guaranteed, effectively prevent the current breakdown, to ensure the safety of electricity.
All new and high quality sheath, water-resistant and oil-resistant, soft and easy to install.
Environment friendly, safer use, better quality, low cost and sooner delivery.
Our products are produced according to Chinese standards (GB/T, ISO9001) and international standards including IEC, BS, DIN, ICEA or according to customers’ requirements. It has also got CCC (China Compulsory Certification) and ISO certificates. Thus, the quality of each product could be guaranteed.
Huanghe Cable Group supports you always.
Our engineer team support with professional suggestions and solutions. Customized products can be provided based on your specifications.
A: The most common armored models are generally SWA (steel wire armored) and STA(steel tape armored).
SWA Cable is suitable for high drop areas and can withstand mechanical external forces and considerable tension.

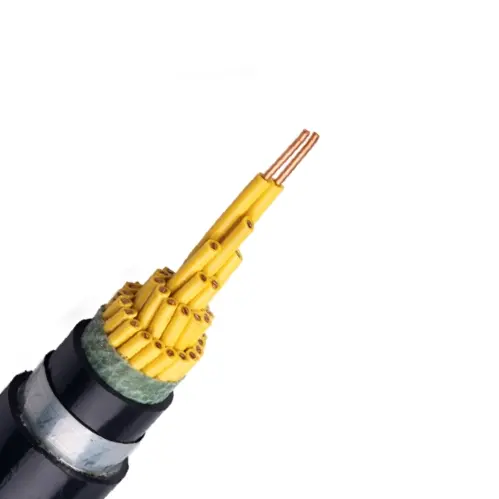

STA Cable is suitable for buried laying and can withstand mechanical external forces but cannot withstand large tensile forces.
Generally , SWA is preferred because it enables the cable to be drawn into an installation using apulling stocking which grips the outside of the oversheath and transfers all the pulling tension to the SWA. This cannot normally be done with STA cables because of the risk of dislocating the armour tapes during the pull.
And unarmored cable can be used if it is installed indoors or in a protected areasuch as a pipe, where it does not need to withstand an external forces/tensile.
