O.6/1kV Copper Conductor XLPE Insulated Cable |
|||
|
Copper Cable Models |
Description |
Cores |
Cross Section Area |
|

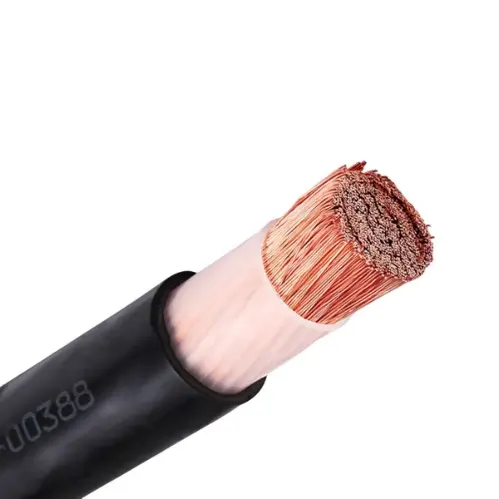

Cu/xlpe/pvc |
copper core, xlpe insulated, |
1 core |
0.5~1000mm² |
|

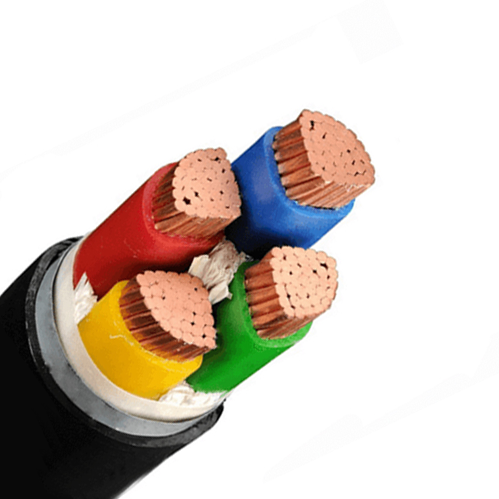

Cu/xlpe/sta/pvc |
copper core, xlpe insulated, steel tape armoured, pvc sheathed cable |
4~1000mm² |
|
|
Cu/xlpe/swa/pvc |
copper core, xlpe insulated, steel wire armoured, pvc sheathed cable |
||
|
Note: Flame retardant cable and fire resistant cable are also available. |
|||
|
O.6/1kV Copper Conductor PVC Insulated Cable |
|||
|
Copper Cable Models |
Description |
Cores |
Cross Section Area |
|
Cu/pvc/pvc |
copper core, pvc insulated, |
1 core |
0.5~1000mm² |
|
Cu/pvc/sta/pvc |
copper core, pvc insulated, steel tape armoured, pvc sheathed cable |
4~1000mm² |
|
|
Cu/pvc/swa/pvc |
copper core, pvc insulated, steel wire armoured, pvc sheathed cable |
||
|
Note: Flame retardant cable and fire resistant cable are also available. |
|||
|
Medium Voltage Copper Conductor XLPE Insulated Cable |
|||
|
Copper Cable Models |
Description |
Cores |
Cross Section Area |
|
Cu/xlpe/pvc |
copper core, xlpe insulated, |
1 core (sta, awa) 3 cores (sta, swa, awa) |
35~1000mm² |
|
Cu/xlpe/sta/pvc |
copper core, xlpe insulated, steel tape armoured, pvc sheathed cable |
||
|
Cu/xlpe/swa/pvc |
copper core, xlpe insulated, steel wire armoured, pvc sheathed cable |
||
|
Cu/xlpe/awa/pvc |
copper core, xlpe insulated, aluminum wire armoured, pvc sheathed cable |
||
|
Note: Flame retardant cable and fire resistant cable are also available. |
|||
| Voltage: | 1kV ~3kV |
| Conductor: | Copper or Tinned Copper (solid class1, stranded class2, flexible class5 ) |
| Insulation: | Crosslinked Polyethylene (XLPE) Polyvinyl Chloride (PVC) (optional) Polyethylene (PE) (optional) |
| Shield Layer (optional): | Copper tape(CTS) Copper Wire Braided (CWB) |
| Armour Type (optional): | steel tape armoured (sta) steel wire armoured (swa) aluminum wire armoured (awa) |
| Outer Sheath: | Polyvinyl Chloride (PVC) PE (Polyethylene) (optional) |
| Standards: | CCC/UL/CE/CNAS/IEC Certificate |
| Additional: | *FR, FRLS, LSZH, LSOH, LSHF, anti-termite cables are also available. *Customized products are supported. |

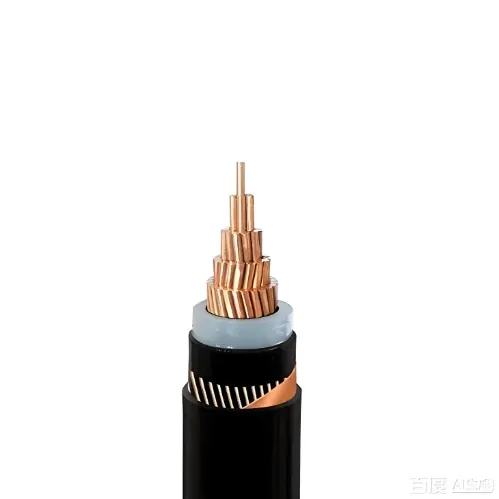

| Voltage: | 3.6kV ~35kV |
| Conductor: | Copper or Tinned Copper |
| Insulation: | Crosslinked Polyethylene (XLPE) |
| Shield Layer: | Copper Tape Shield(CTS) Copper Wire + Copper Tape Helically Shield (optional) |
| Armour Type (optional): | steel tape armoured (sta) steel wire armoured (swa) Aluminum wire armoured (awa) |
| Outer Sheath: | Polyvinyl chloride (PVC) |
| Standards: | CCC/UL/CE/CNAS/IEC Certificate |
| Additional: | *FR, FRLS, LSZH, LSOH, LSHF, anti-termite cables are also available. *Customized products are supported. |
XLPE Material:
Max. service temperature: 90 ℃
Min.temperature when installation: 0℃
Max. short-circuit temperature: 250℃ (max. 5s)
Min. service temperature: -40℃ (fixed and protected installations)
Max. service temperature: 70 ℃
Min.temperature when installation: 0℃
Max. short-circuit temperature: 160℃ (max. 5s)
Min. service temperature: -40℃ (fixed and protected installations)
|
Item |
Single Core |
Multi core |
||
|
Unarmored |
Armored |
Unarmored |
Armored |
|
|
Min. Bending Radius When installation |
20D |
15D |
15D |
12D |
|
Minimum bending radius of the cable near the connection box and terminal (bending should be carefully controlled, such as with a formed guide) |
15D |
12D |
12D |
10D |
|
* D means overall diameter of cables. |
||||
99.99% Copper/99.6% Aluminum Safety, low resistance, stable voltage, more power saving.
Prevent damage is guaranteed, effectively prevent the current breakdown, to ensure the safety of electricity.
All new and high quality sheath, water-resistant and oil-resistant, soft and easy to install.
Environment friendly, safer use, better quality, low cost and sooner delivery.
Our products are produced according to Chinese standards (GB/T, ISO9001) and international standards including IEC, BS, DIN, ICEA or according to customers’ requirements. It has also got CCC (China Compulsory Certification) and ISO certificates. Thus, the quality of each product could be guaranteed.
Huanghe Cable Group supports you always.
Our engineer team support with professional suggestions and solutions. Customized products can be provided based on your specifications.
A: Load Power
The load power of copper cable is larger than that of aluminum cable with the same sectional area.
A: Flexibility
Copper cable has the characteristics of better flexibility, strong fatigue and easy bending. And aluminum cable is relatively easy to break when bent.
A: Stability
Aluminum cable is easy to oxidize which increase the resistance, reduces the load and is pone to safety problems. But copper cable is extremely stable.
A: Resistivity
The resistivity of the copper cable is small, which is lower than 1.68 times that of the aluminum cable, which causes the power loss of the aluminum cable to be relatively large, and the heat is more serious, which affects the utilization rate of electricity.
A: Price
The price of copper cable is generally many times that of aluminum cable.
A: Weight
The density of copper is relatively large, and the weight of the copper cable is much heavier than that of aluminum cable.
